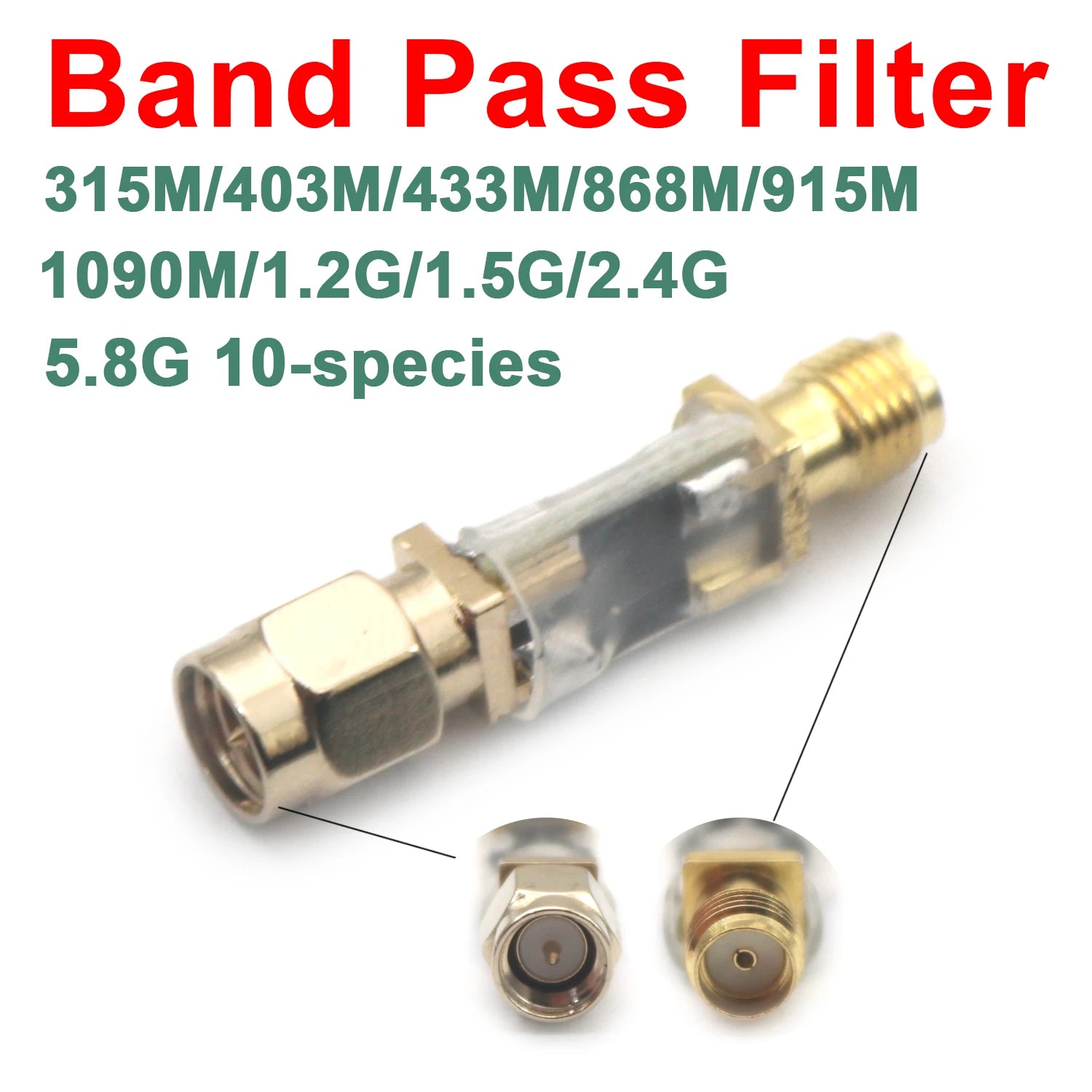

BPF Band Pass Filter 433Mhz 868Mhz 915Mhz 1090Mhz 1.2Ghz 1.5Ghz 2.4Ghz 5.8Ghz signal passive Bandpass Filter LC FOR RF transmitter receiver RFID SDR GPS WIFI Drone Walkie-talkie remote control

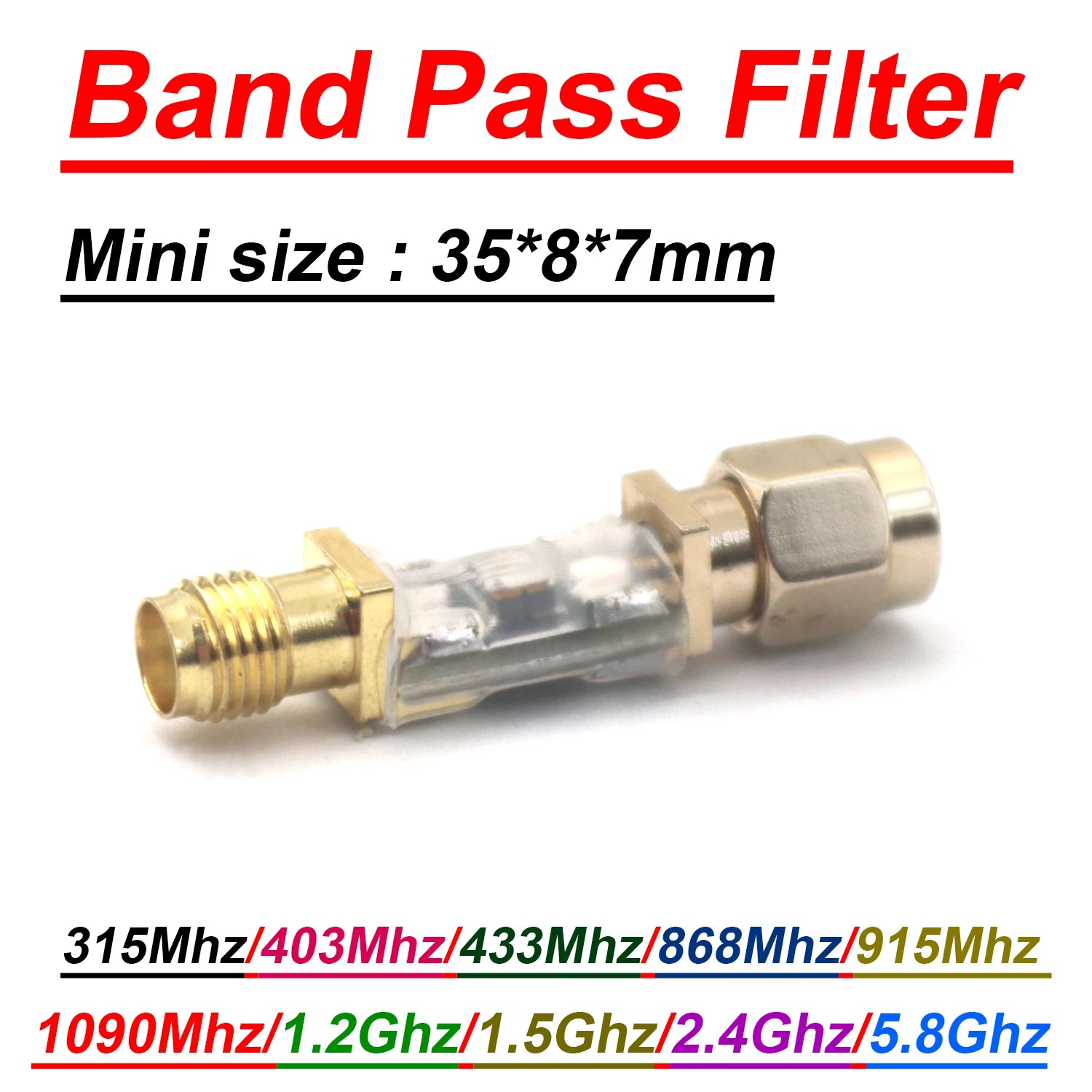

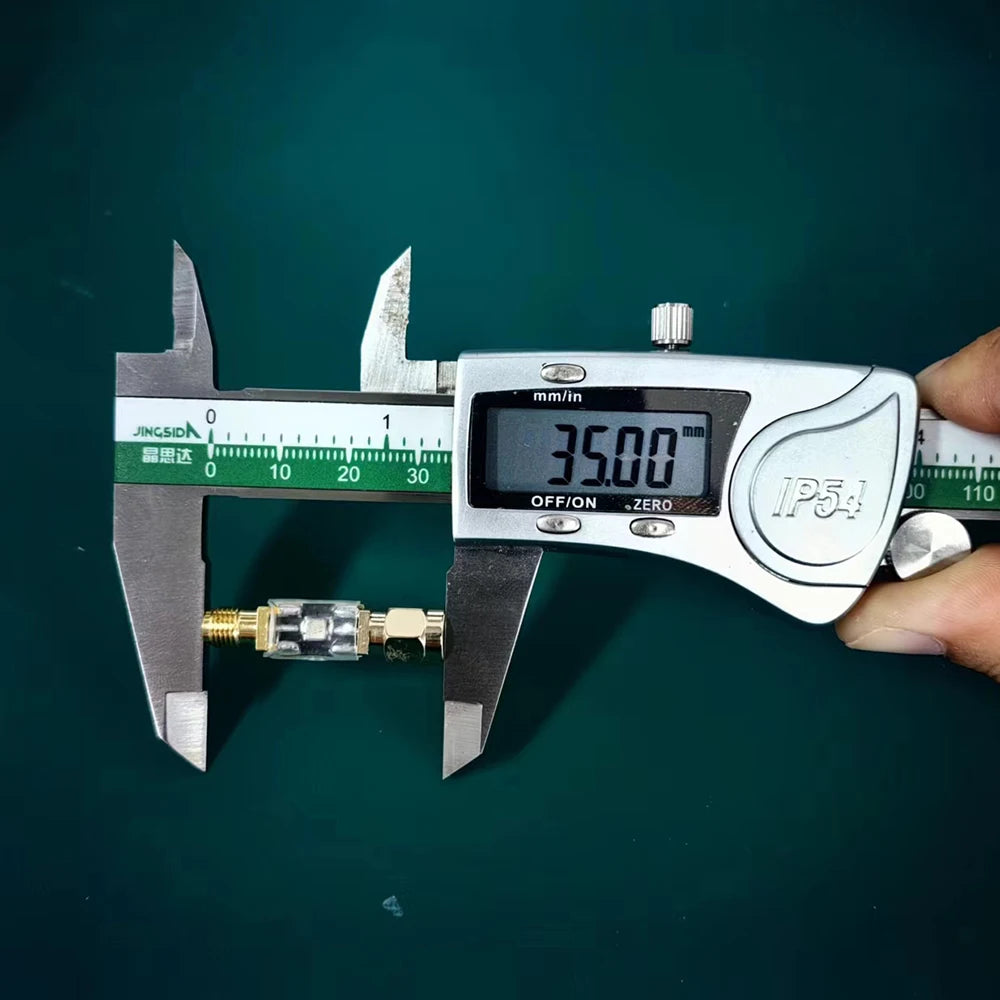

mini size : 35*8*7mm

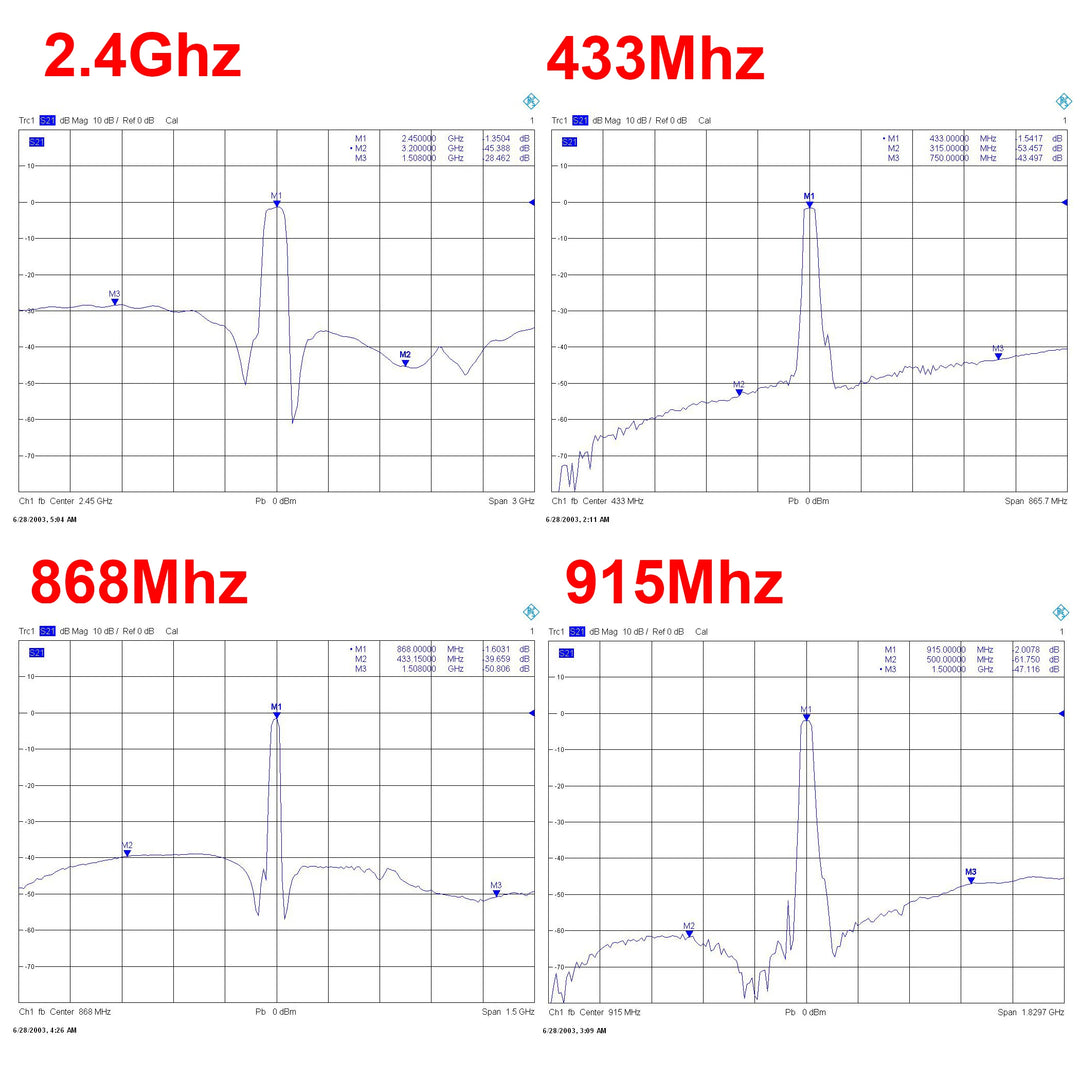

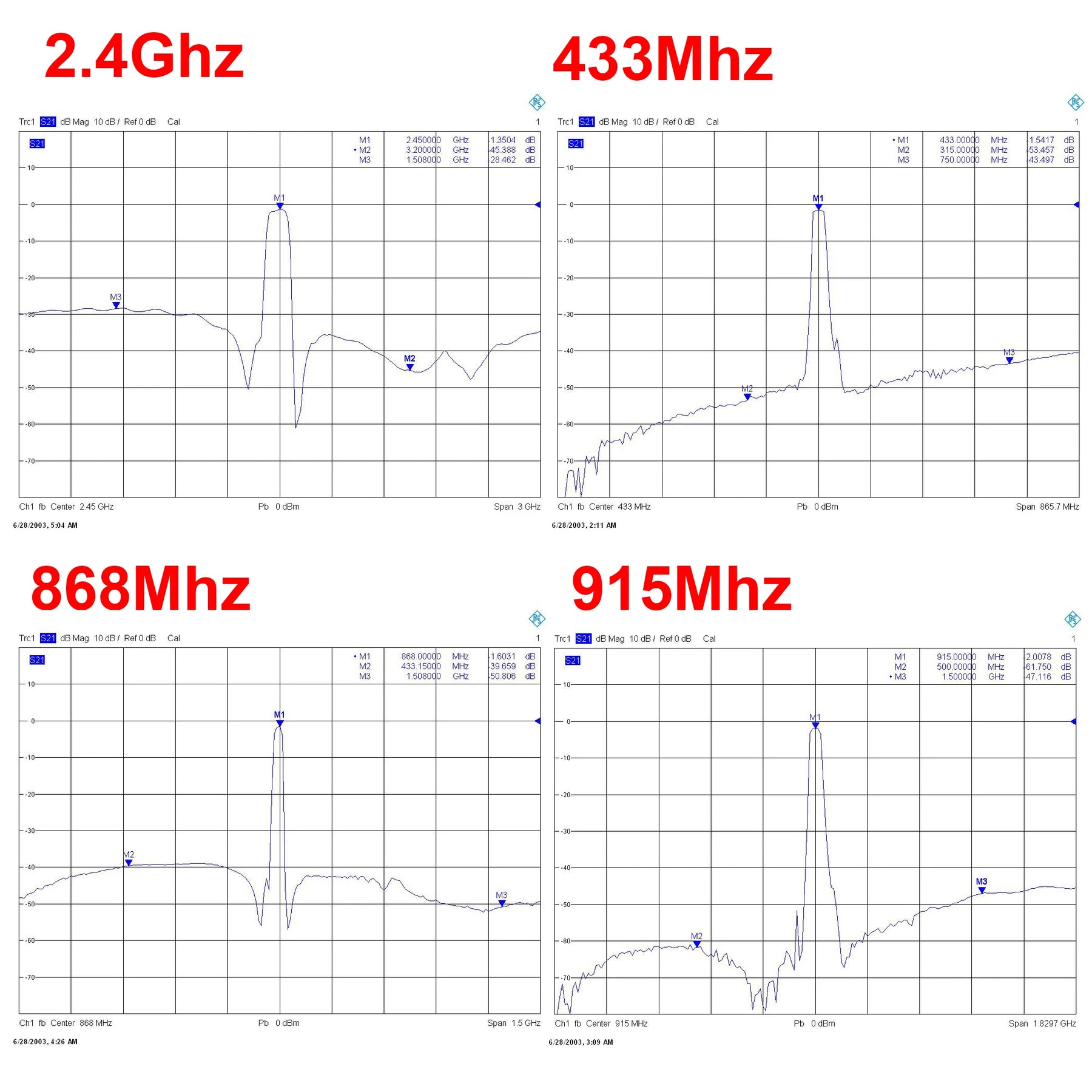

433M bandpass filter
Center frequency: 433 MHz
1dB bandwidth: 20 MHz
Tape interpolation loss: < 1.8dB
Out-of-band suppression: > 60dB@120 MHz
> 45dB@700 MHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA (outer screw hole)
868M bandpass filter
Center frequency: 868 MHz
1dB bandwidth: 10 MHz
Tape interpolation loss: < 2.0dB
Out-of-band suppression: > 42dB@700MHz
> 50dB@1.2GHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA (outer screw hole)
915M bandpass filter
Center frequency: 915 MHz
1dB bandwidth: 30 MHz
Tape interpolation loss: < 2.0dB
Out-of-band suppression: > 58dB@600MHz
> 40dB@1.2GHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA (outer screw hole)

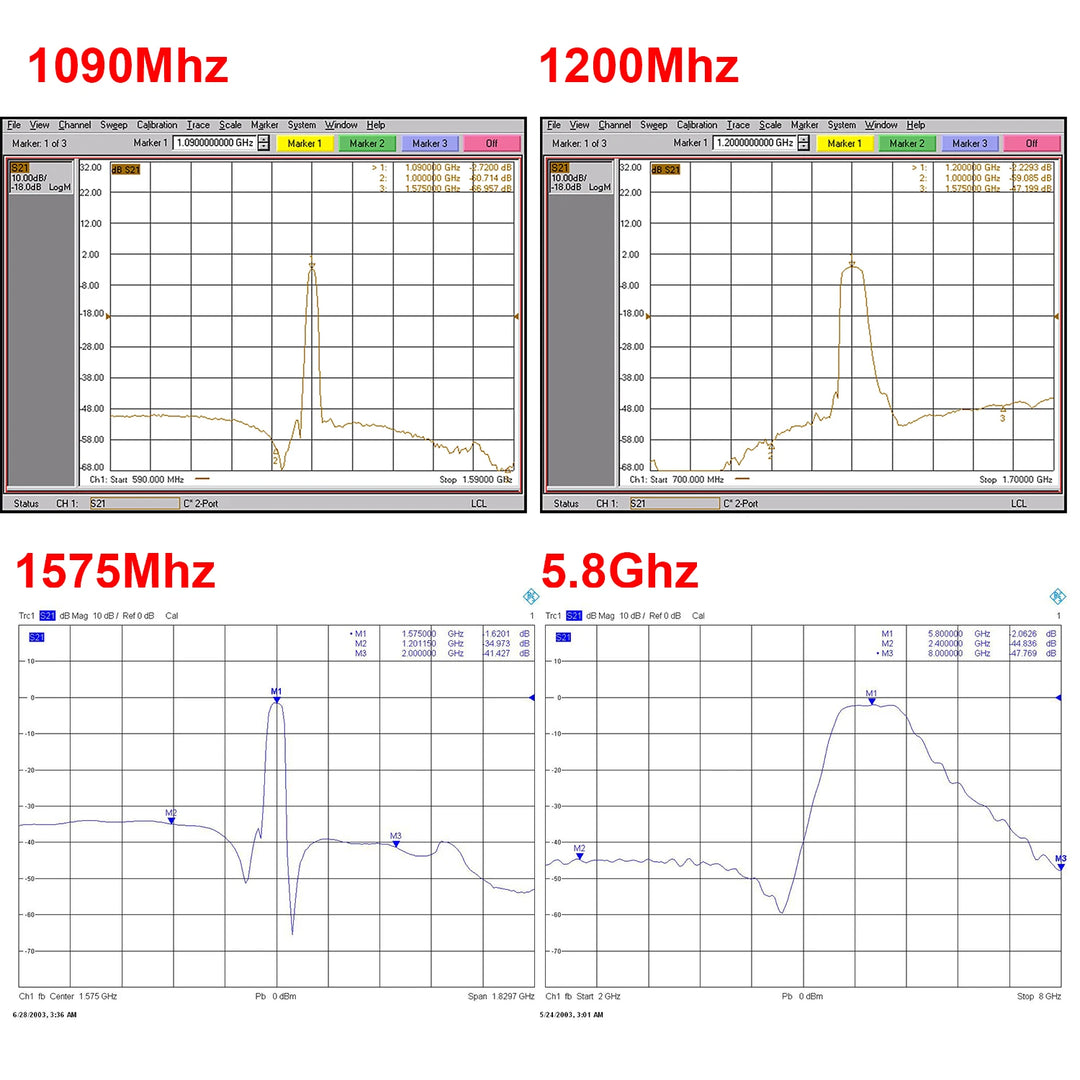

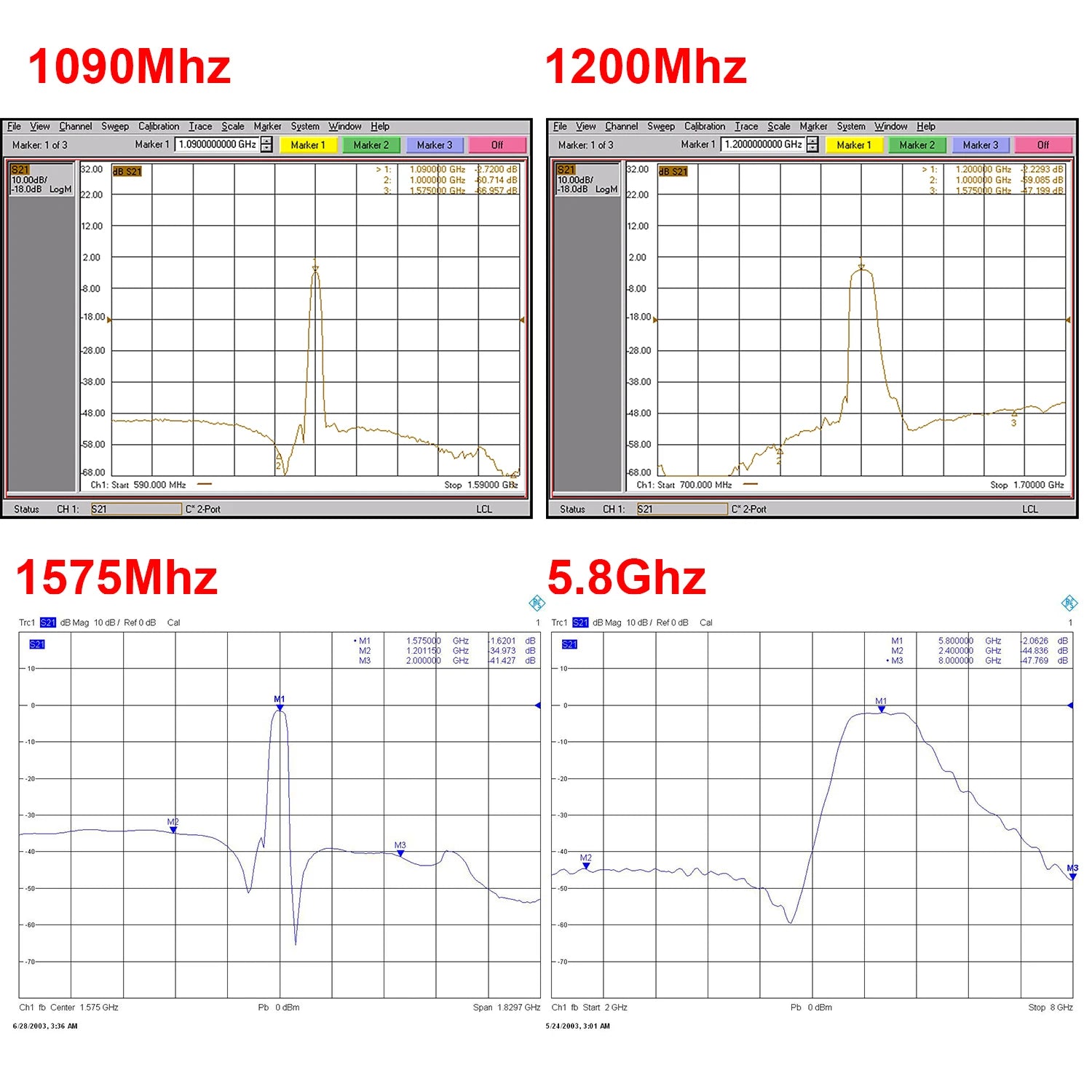

1090M bandpass filter
Center frequency: 1090 MHz
1dB bandwidth: 10 MHz
Tape interpolation loss: < 3.0dB
Out-of-band suppression: > 65dB@915MHz
> 42dB@1.5GHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA (outer screw hole)
1.2G bandpass filter
Center frequency: 1200 MHz
1dB bandwidth: 40 MHz
Tape interpolation loss: < 2.0dB
Out-of-band suppression: > 45dB@900MHz
> 38dB@1.575GHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA (outer screw hole)
1575M bandpass filter
Center frequency: 1575 MHz
1dB bandwidth: 20 MHz
Tape interpolation loss: < 1.8dB
Out-of-band suppression: > 35dB@1.2GHz
> 45dB@1.7GHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA (outer screw hole)
2.4G bandpass filter
Center frequency: 2450 MHz
1dB bandwidth: 100 MHz
Tape interpolation loss: < 2.0dB
Out-of-band suppression: > 45dB@2.2GHz
> 45dB@2.65GHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA (outer screw hole)
5.8G bandpass filter
Center frequency: 5800 MHz
1dB pass band: 600 MHz
Insertion loss: < 2.0 dB
Out-of-band suppression: > 44dB@2.4GHz
> 45dB@8GHz
Impedance: 50 Ohms
Maximum load power: 10 W (40 dBm)
Interface: SMA (outer screw hole)
SPECIFICATIONS
2.4GHZ 5.8GHZ: WIFI
BPF 433MHZ 403MHZ: Walkie-talkie
BPF 868Mhz 915m: LORA Helium Miner UAV drones
Brand Name: Dykbcells
Certification: None
Choice: yes
DIY Supplies: Electrical
Hign-concerned Chemical: None
Model Number: RF BPE 403M-5.8G
Origin: Mainland China
Output Voltage: Ham Radio Amplifier
RF Band Pass Filter: BPE RF amplifier
Style: SAM
Type: RF Band Pass Filter
semi_Choice: yes
