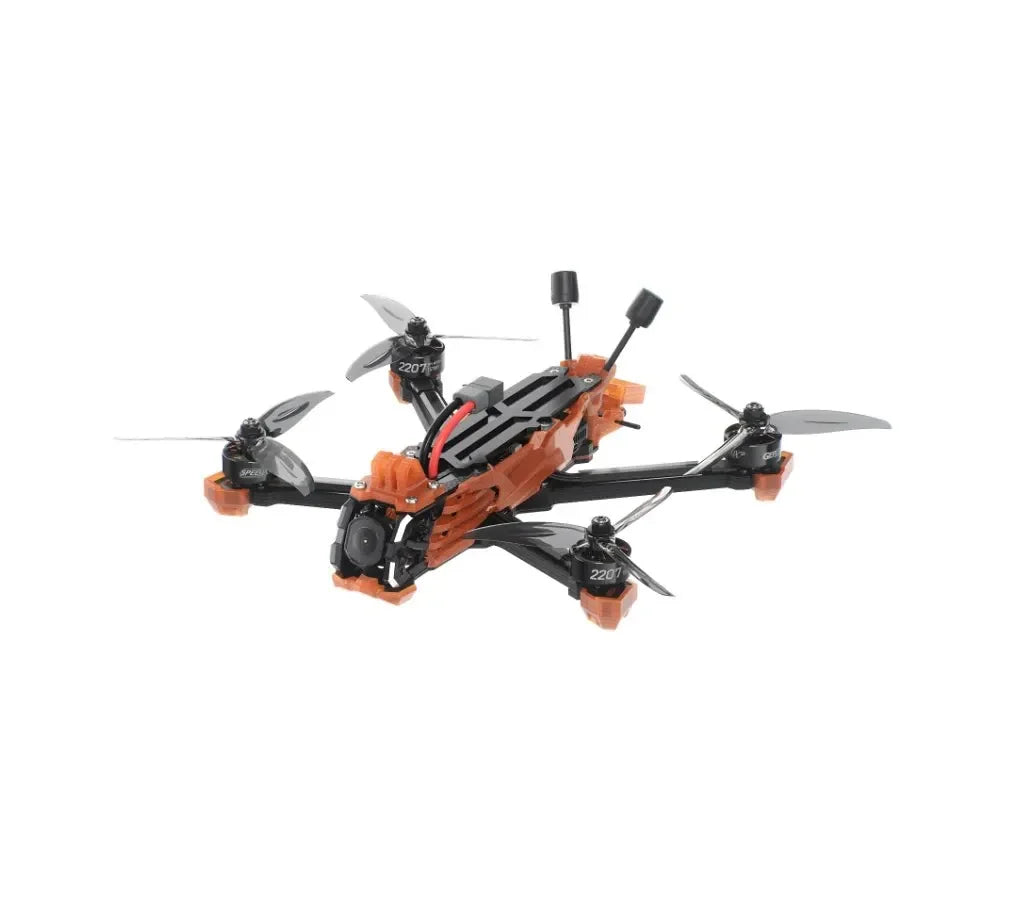

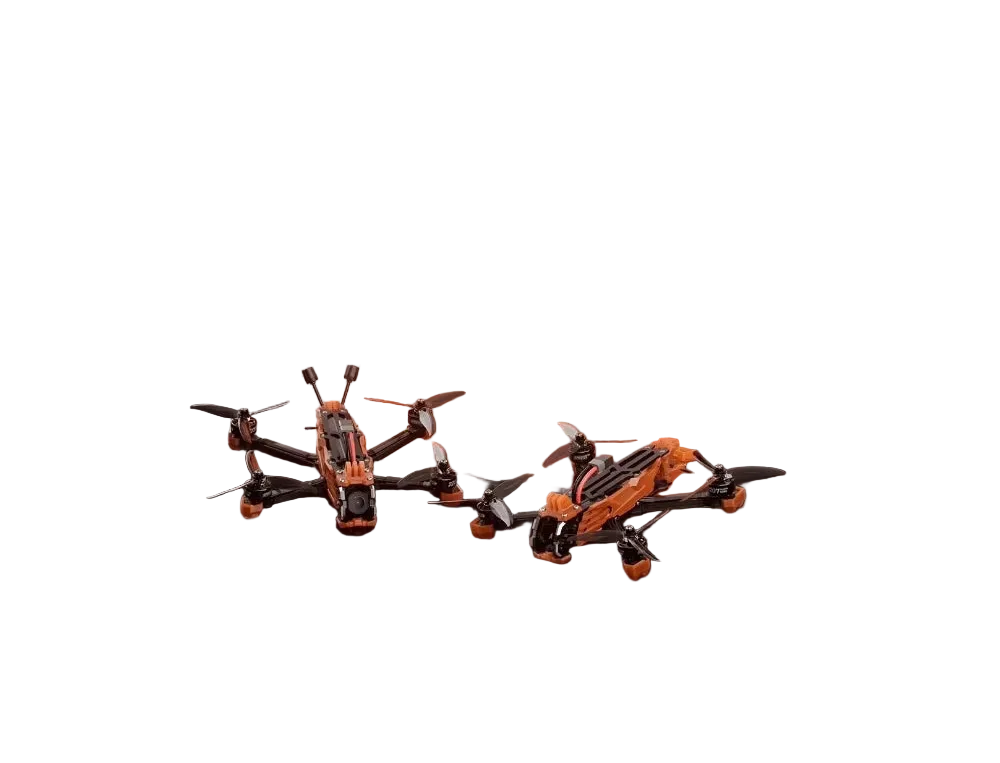

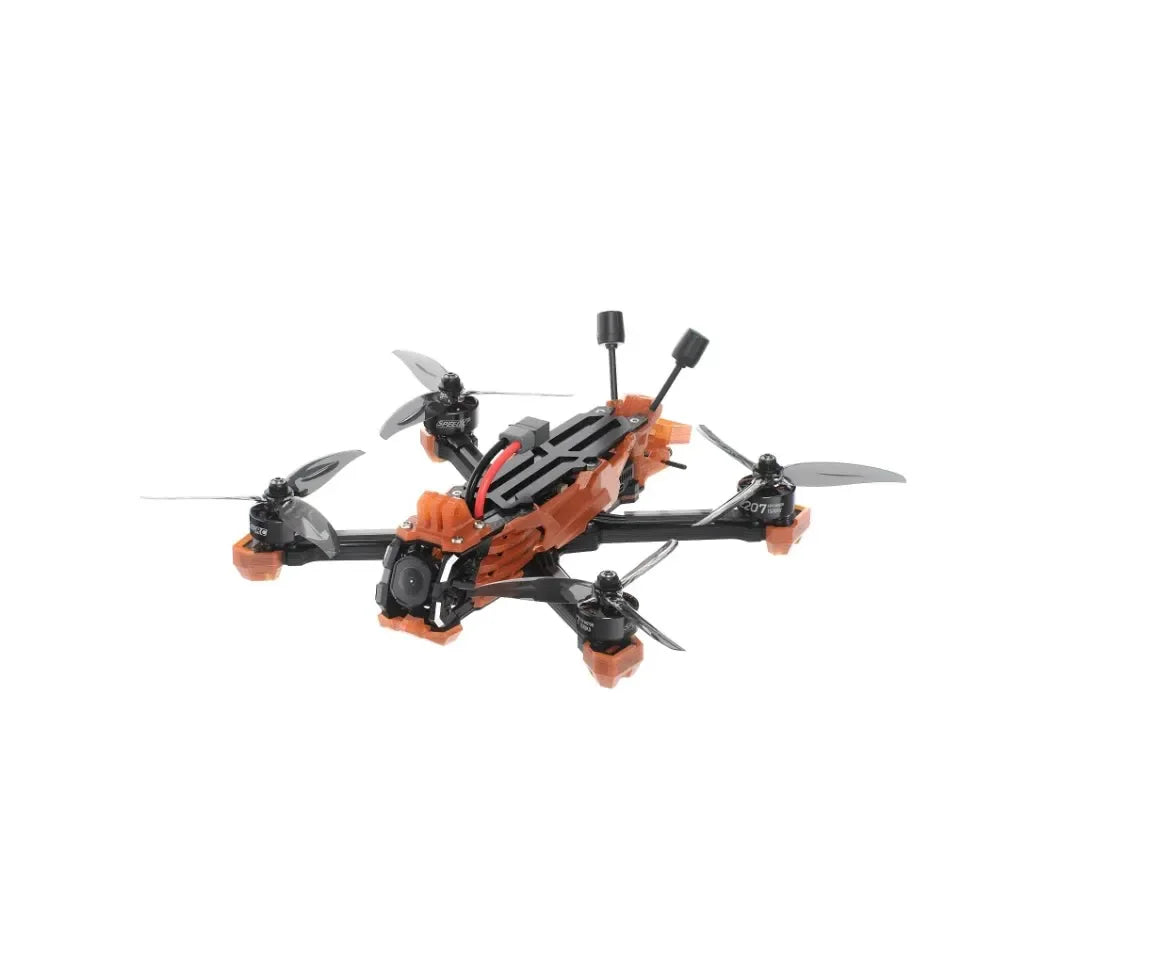

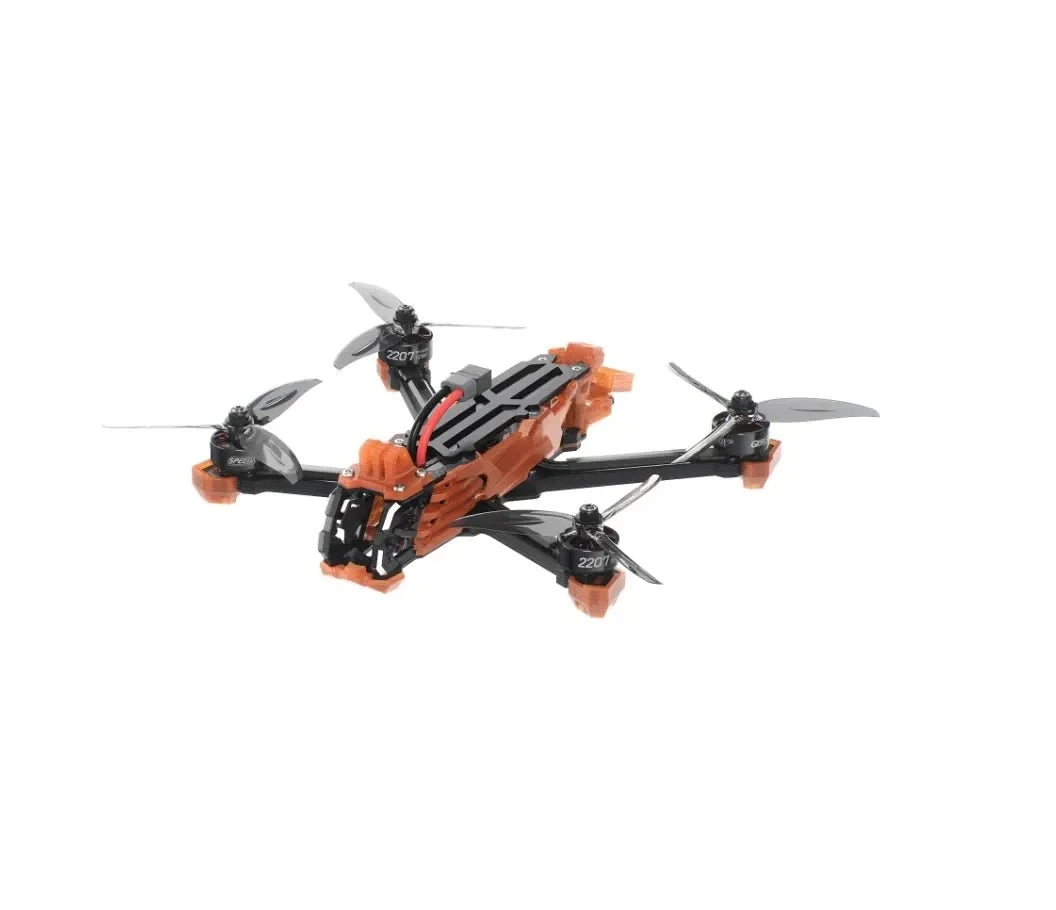

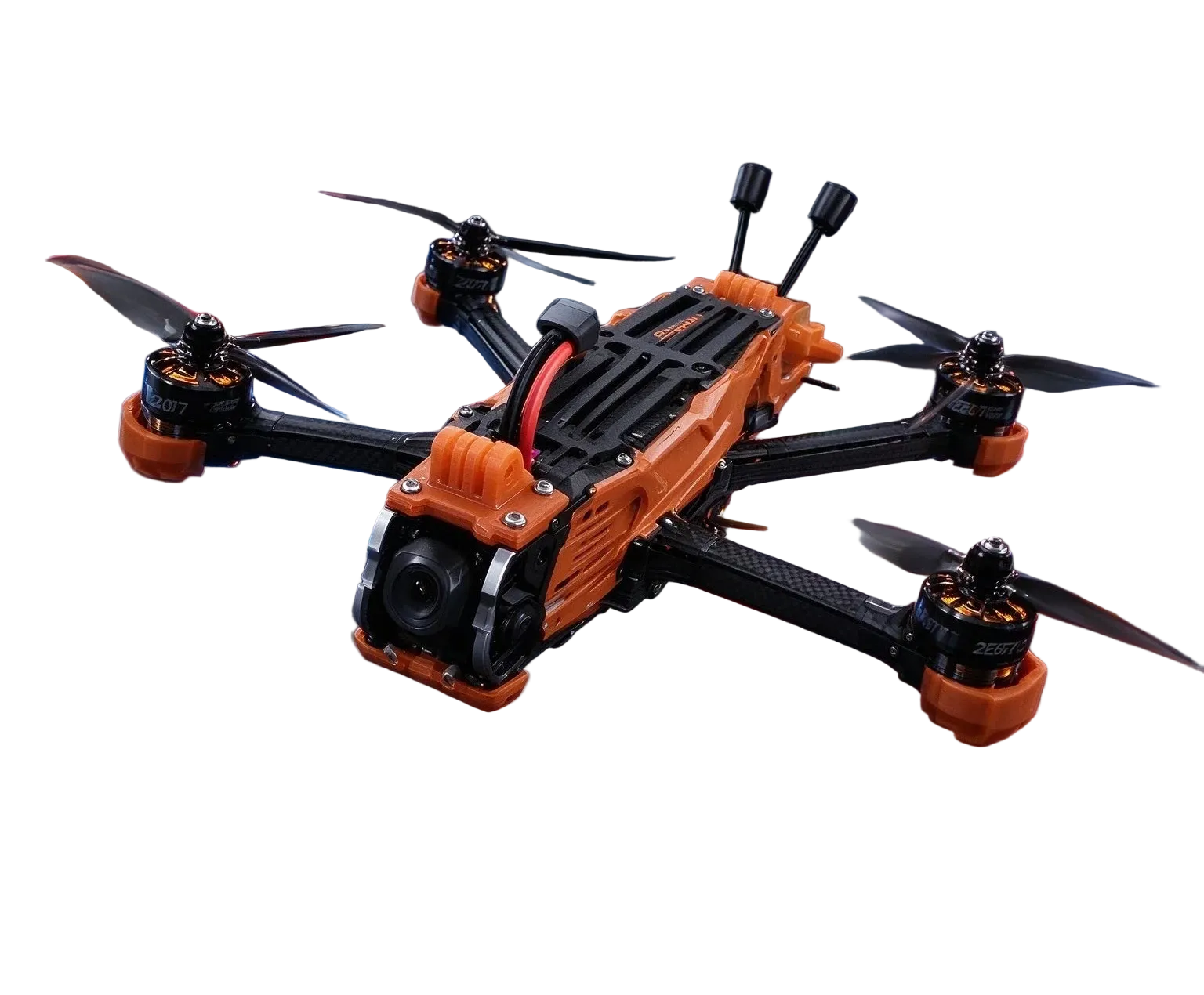

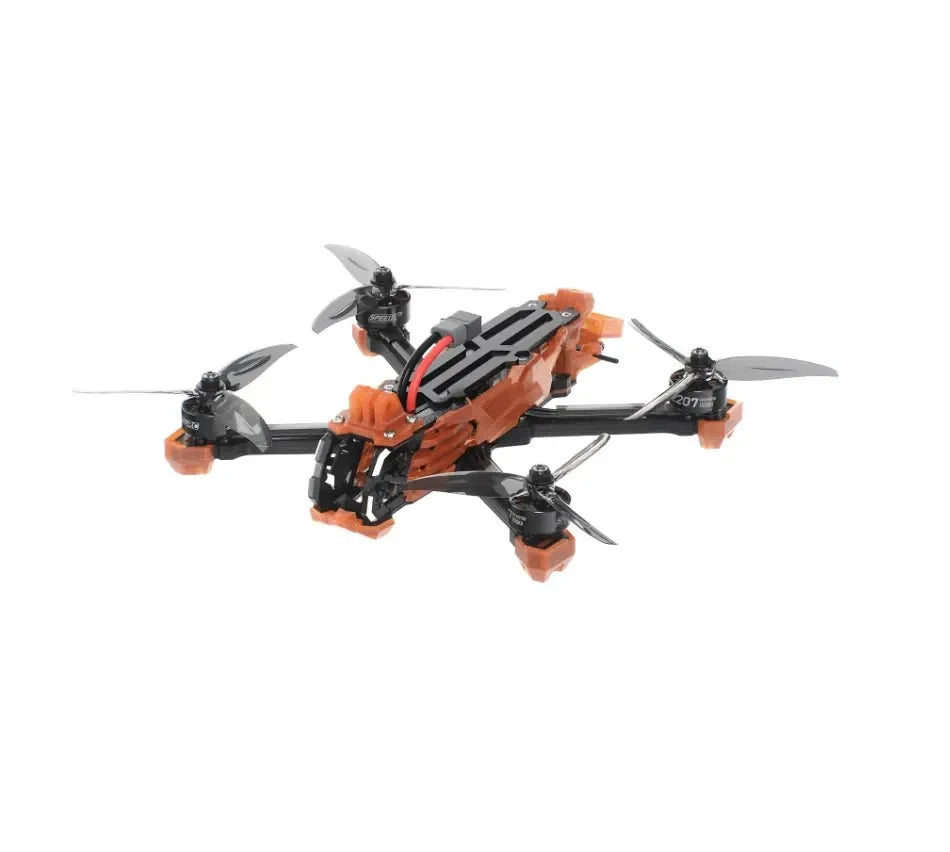

GEPRC Vapor: Two 5-Inch Platforms for 8S FPV
Choose a Vapor X5 or D5 platform with GEPRC SPEEDX2 2207 1570KV motors, GEMFAN 51477 propellers and a TAKER F722 8S flight controller. Six configurations let experienced builders compare WTFPV, O4 Pro PNP and O4 Pro ELRS packages.
Plan your video and radio equipment before your next build session. The source marks the O4 Pro specifications and ELRS receiver as Not Installed, so these packages should not be assumed to arrive fully assembled or ready to bind and fly.
Choose Your Configuration
- X5-8S-WTFPV-PNP: X5 platform with no receiver selected. The WTFPV specification does not list an included video transmitter or camera; confirm the video-hardware exclusions before ordering.
- D5-8S-WTFPV-PNP: D5 counterpart with the same video and receiver checks required.
- X5-8S-O4-Pro-PNP: X5 O4 Pro-designated package, without a receiver selected. The source lists O4 Pro video module, camera and antenna but marks the section Not Installed; confirm supplied parts and assembly requirements.
- D5-8S-O4-Pro-PNP: D5 counterpart with the same O4 Pro installation clarification required.
- X5-8S-O4-Pro-ELRS2G4: X5 O4 Pro/ELRS 2.4GHz-designated package. Confirm receiver inclusion and installation, since the source identifies the receiver as Not Installed.
- D5-8S-O4-Pro-ELRS2G4: D5 counterpart with the same radio and video installation checks required.
PNP refers to the receiver selection here; it does not by itself establish whether video hardware is included. ELRS 2.4GHz requires a matching ExpressLRS transmitter and compatible binding settings. Compatible goggles are required for an installed DJI O4 Pro system.
Core Specifications
- Frames: GEP-Vapor-X5 O4 Pro 8S / GEP-Vapor-D5 O4 Pro 8S.
- Wheelbase: Listed 230mm X5 / 238mm D5.
- Plate thickness: Top 2.0mm; middle and bottom 2.5mm.
- Arm thickness: 7.0mm.

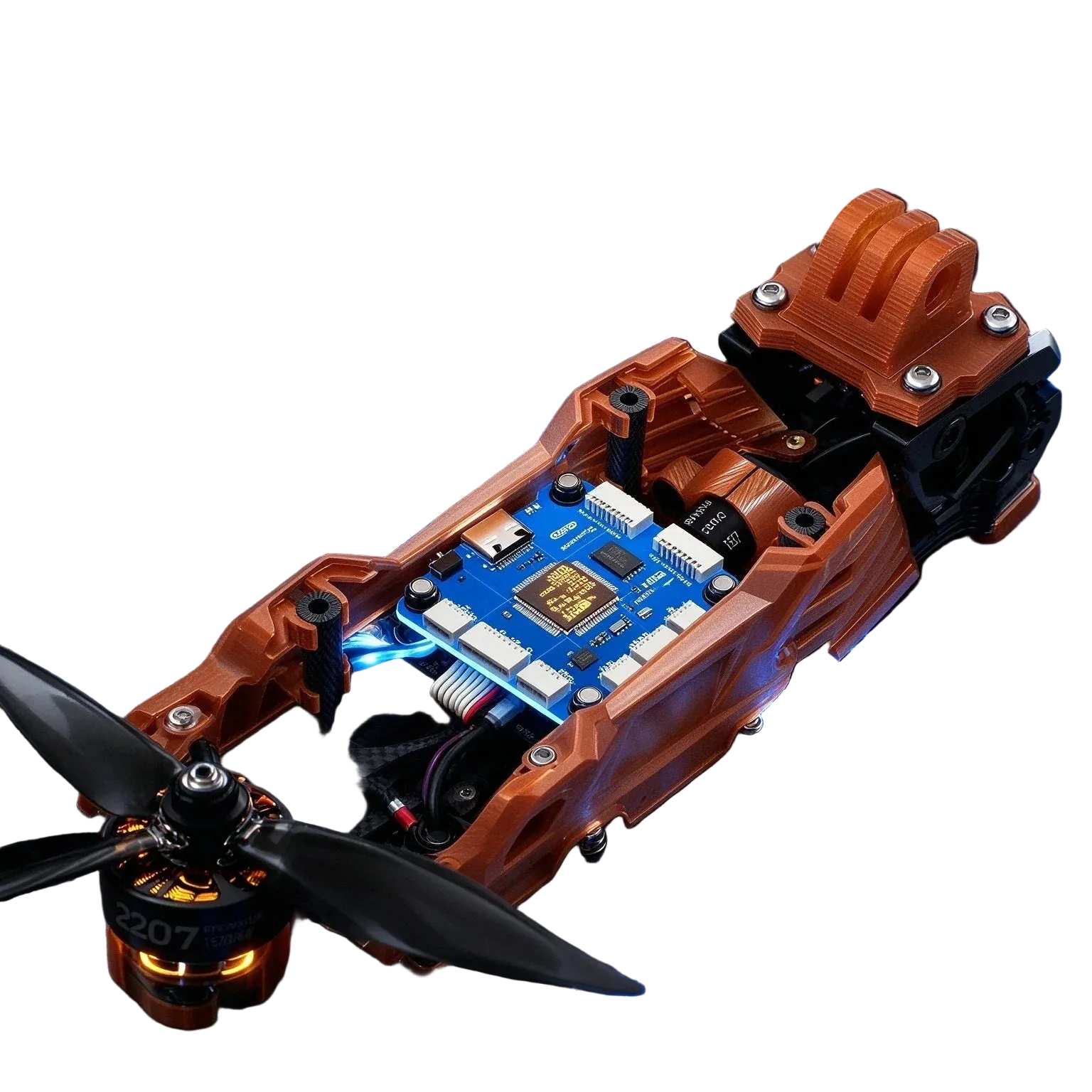

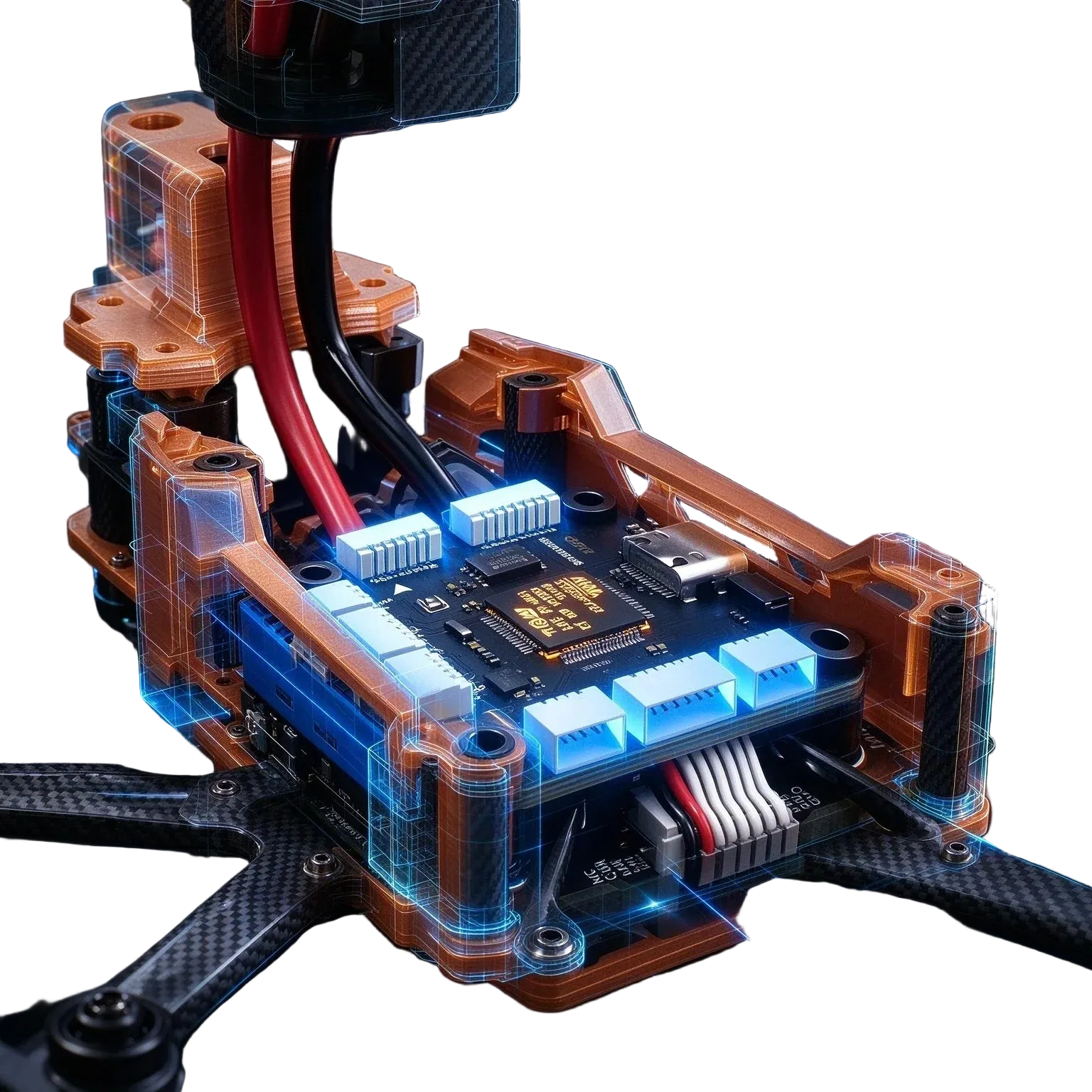

- Flight controller: GEPRC TAKER F722 8S.
- MCU: STM32F722.
- Gyroscope: ICM42688-P via SPI.
- Barometer: Listed as present.

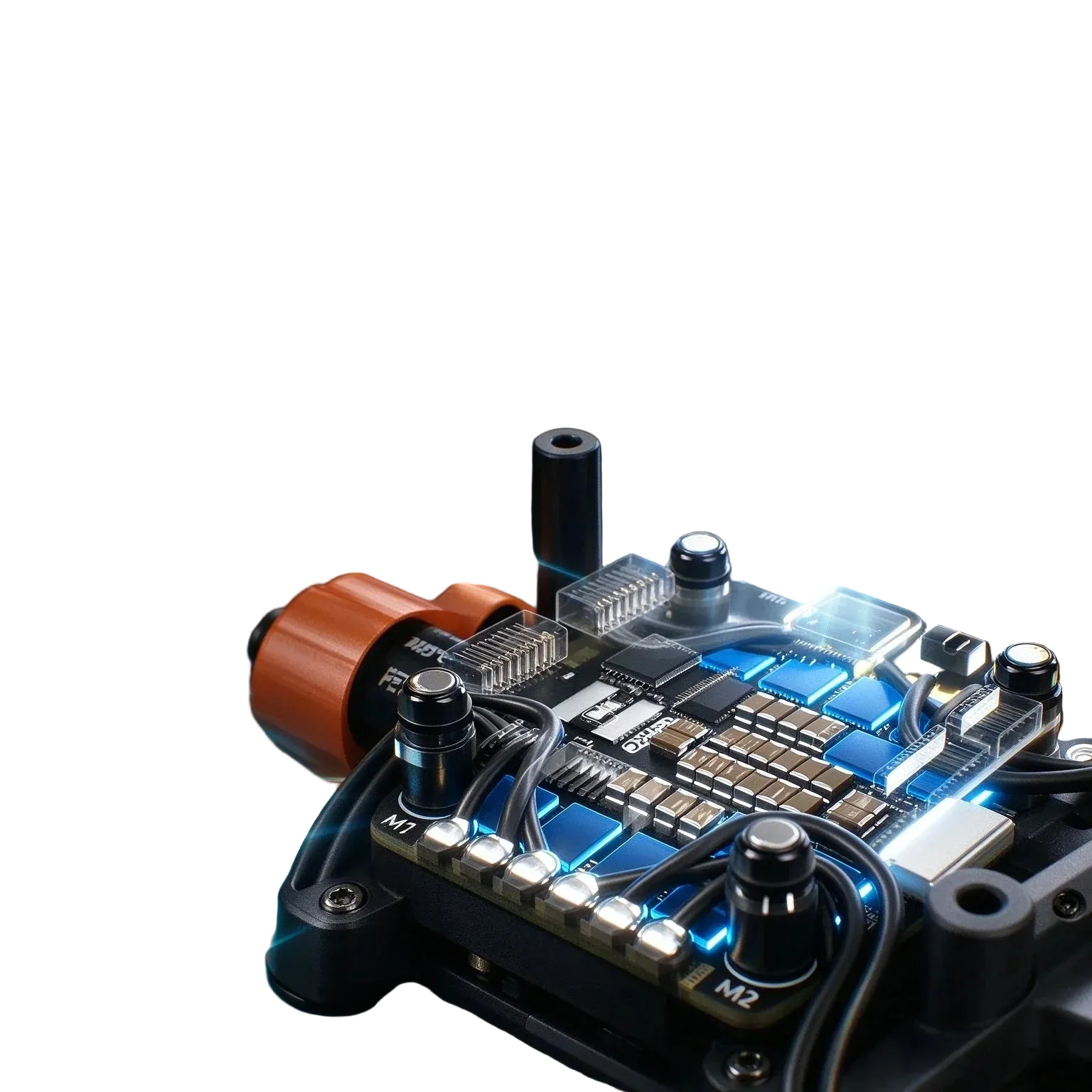

- ESC: TAKER H65_8S_32Bit 65A 4-in-1.
- Motors: GEPRC SPEEDX2 2207 1570KV.
- Propellers: GEMFAN 51477, 5-inch class.
- Recommended battery: 8S LiPo 1300–1800mAh, not included.
Weight and Power Connection
Listed reference weights are 479g ±5g for X5 WTFPV and 497g ±5g for D5 WTFPV; the O4 Pro section lists 504g ±5g and 511g ±5g respectively. Confirm the measurement configuration and actual completed weight after hardware installation and battery selection.
The detailed specification lists XT60, while every selectable option says No plug. Confirm whether a battery connector or cable is supplied, loose or installed. Do not assume a finished power connection. Verify voltage compatibility throughout the complete build before connecting an 8S pack.
Flight-Time Expectations
The source lists approximately 12 minutes in slow-cruise testing. This is not a guaranteed freestyle duration; battery capacity, flying style, hardware weight and conditions affect results. A barometer does not establish GPS, obstacle avoidance or autonomous return-to-home capability.
Perfect For
Experienced FPV builders comparing 5-inch 8S aircraft configurations and comfortable installing video equipment, configuring a radio receiver and performing preflight checks.
What's Included
One selected Vapor X5 or D5 aircraft/platform configuration. The O4 Pro-designated specification references a DJI O4 Pro transmitter module, camera and antenna, but the Not Installed wording requires confirmation of the final packing list and assembly state. Confirm ELRS receiver supply and installation separately. WTFPV configurations do not establish included video hardware.
No complete accessory list is supplied. Confirm propeller quantities, mounting hardware, antennas and leads before ordering. Flight battery, charger, goggles and radio transmitter are not established as included.
Setup and Safety
- Remove propellers for wiring, firmware work and motor tests.
- Check battery polarity, connector installation and voltage limits before powering up.
- Verify video-system power regulation and cooling requirements.
- Confirm motor order, direction, receiver binding and failsafe settings before flight.
- Use a battery with suitable dimensions, discharge capability and secure mounting.
- Keep people and loose objects clear of exposed propellers.
For package contents, assembly state or connector confirmation, contact sales@buyrcdroneoutlet.com before ordering.
